CIG BLUSOLUTIONS · ENGINEERED FOR AI DENSITY

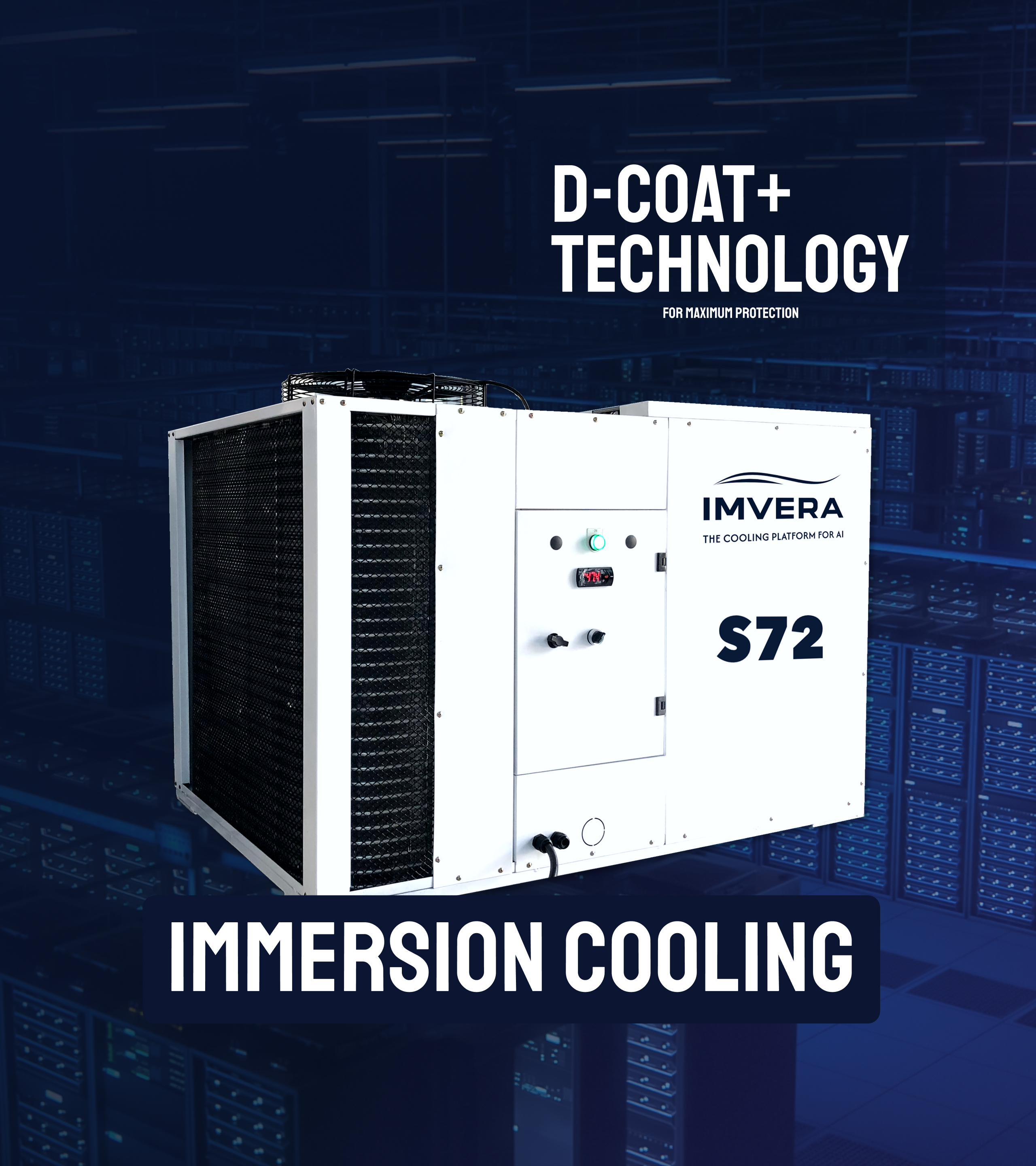

A family of self-contained dielectric fluid immersion cooling systems engineered for data center deployments. Servers fully submerged. Heat absorbed at the source. No external chiller, no facility water loop.
1.08
Achievable PUE
140 kW/rack
No hot spots
80 %less
Energy vs. air cooling
40 years
OEM HEX manufacturing
by CIG BluSolutions
— HOW IT WORKS
Dielectric fluid circulates in a closed loop entirely within the unit — from the immersion tank, through the pump, through the CIG BluSolutions fin-tube coil heat exchanger, and back. No external water connection.
STEP 01
IT equipment fully immersed. Server fans removed. Fluid contacts every heat-generating surface directly.
STEP 02
Dielectric fluid absorbs heat at point of generation. Thermal conductivity far superior to air.
STEP 03
Pump moves warm fluid through the CIG copper-tube / aluminium-fin heat exchanger.
STEP 04
Integrated fan draws ambient air across the coil. Cooled fluid returns to the tank — closed loop.
— MODEL RANGE
7.20 kW/rack
15.69 kW/rack
140 Up to
kW/rack
Capacity, tank size, coil rows, fan count, and electrical supply — all configurable to your IT load profile and site conditions.
COMMON SPECIFICATIONS
— THE IMMERSION ADVANTAGE
Eliminates CRAC, raised floor, and hot/cold aisle. PUE drops from 1.85 industry average to as low as 1.08.
Server fans removed before deployment. Near-silent operation. Office-adjacent & edge deployments possible.
Removes the air-cooling density ceiling. GPU clusters, AI/HPC, HFT — no hot spot risk.
Fluid shields hardware from dust, humidity, corrosion. Reduced thermal cycling improves MTBF.
No raised floor, no precision CRAC, no aisle containment. Cuts upfront civil & M&E cost significantly.
Self-contained units deploy independently. Scale by adding units — no central plant expansion.
