MaxFlow · Dry CoolerV-Type · EC 800 mm

CIG BLUSOLUTIONS · ENGINEERED FOR AI DENSITY

MaxFlow.
132 – 1,164 kW.
24/7 mission-critical.

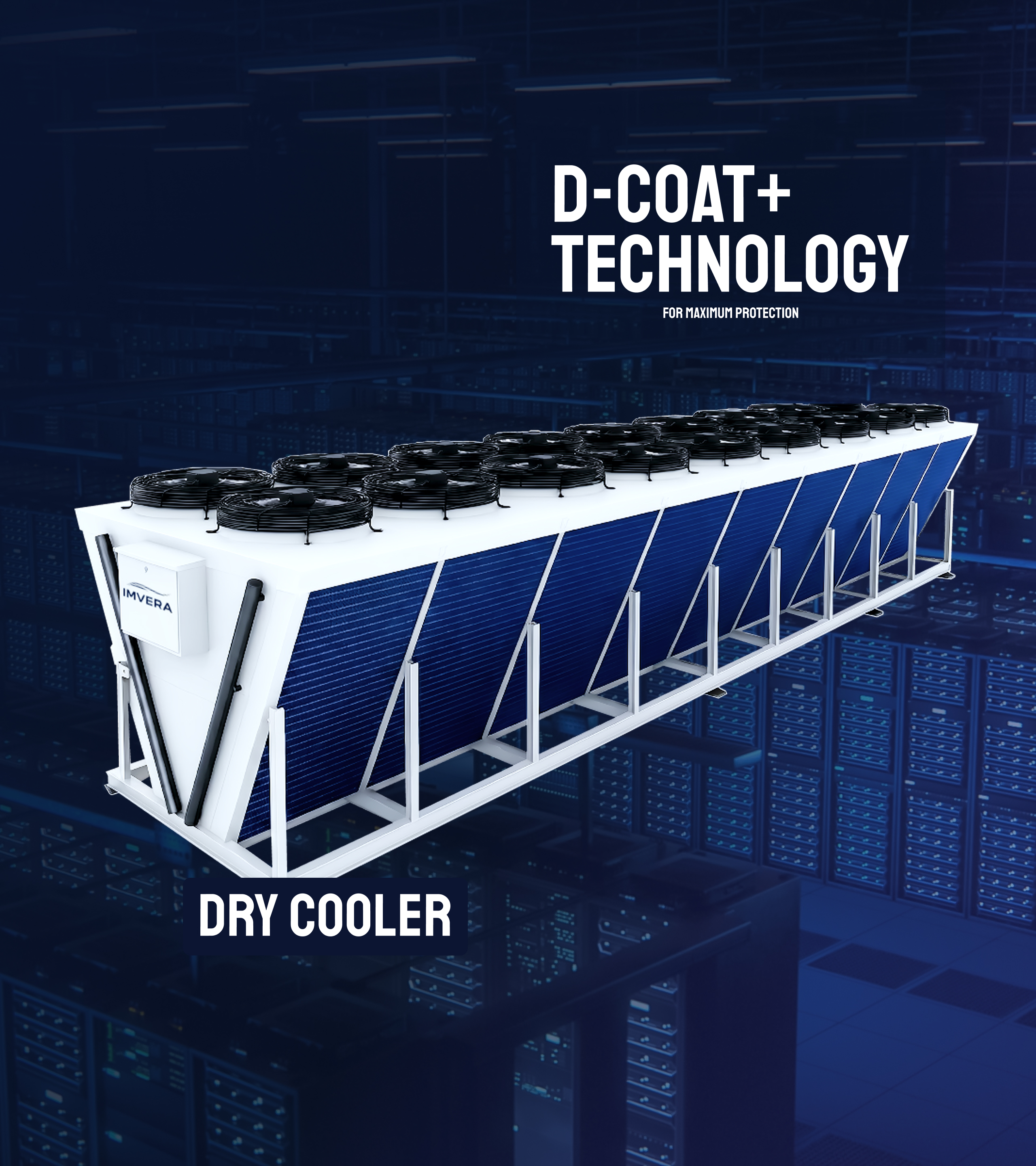

A V-type fin-and-tube heat rejection unit purpose-built for water-cooled data center infrastructure. EC axial fans, inner-grooved copper tubes, symmetrical V-frame — high thermal capacity in a compact footprint.

·EC Ø800 MM ·2.9 KW/FAN ·77 DB(A) ·10 BARG STD.

Download the catalog

— APPLICATION SCOPE

Heat rejection for every water-cooled DC topology.

DC cooling loops

IT equipment fully immersed. Server fans removed. Fluid contacts every heat-generating surface directly.

CDU / chiller heat rejection

Paired with Coolant Distribution Units or process chillers. Rear-door, direct-liquid, or immersion topologies.

Free cooling / economizer

When ambient permits, MaxFlow operates in free-cooling mode — significantly reducing mechanical cooling energy.

STANDARD RATING CONDITIONS

ENTERING AIR (TA)35°C DB

FLUIDWater 100% (glycol available)

FRAMEHot-dip galvanized steel

EWT50°C

OPERATING PRESSURE10 barg (16 on request)

POWER SUPPLY400V / 3-Ph / 50Hz

— ENGINEERING HIGHLIGHTS

Six features that define the platform.

V-TYPE COIL

Maximised face area

Symmetrical V-frame design maximises coil face area relative to footprint — high rejection capacity in compact envelope.

Al fin / Cu tube2 · 3 · 4 rows

EC AXIAL FAN

Precise speed control

EC motors deliver high efficiency across the operating range and IP54 protection. Speed modulation saves energy at part load.

Ø800 mm2.9 kW/fanIP54

INNER-GROOVED TUBES

+30% heat transfer

Inner-groove enhancement increases turbulence & wetted surface area — improves fluid-side heat transfer up to 30% vs. smooth bore.

Inner-grooved Cu10 barg std.

GALVANIZED FRAME

Structural rigidity

Heavy-gauge galvanized steel chassis supports large multi-fan configurations. V-frame base integrates forklift access & anchor points.

Hot-dip galv.Powder-coated

SCALABLE SERIES

2 → 20 fans / unit

Fan-row configurations scale from 132 kW to over 1.16 MW in a single unit. Width consistent at 2,250 mm.

H 2,451W 2,250L 2,400–12,000

MISSION-CRITICAL

Factory-validated

Each unit undergoes hydraulic pressure testing, fan balance verification, & electrical safety checks at our ISO-certified facility.

100% leak-testedISO 9001:2015

— MODEL RANGE · EC FAN Ø800 MM

132 → 1,164 kW. Pick your point.

Selection data shown at rating conditions: 100% water, Ta 35°C, EWT 50°C. Dual

configurations double rejection & flow rate. Micro-channel coil & glycol corrections available.

MODEL	HEAT REJECTION	AIRFLOW	POWER	LENGTH	WEIGHT
CLVC-222-E0	132.26 kW	180,000 CMH	11.6 kW	2,400 mm	398 kg
CLVC-224-E0	172.10 kW	168,000 CMH	11.6 kW	2,400 mm	656 kg
CLVC-234-E0	303.00 kW	360,000 CMH	17.4 kW	3,600 mm	1,019 kg
CLVC-244-E0	456.70 kW	640,000 CMH	23.2 kW	4,800 mm	1,284 kg
CLVC-254-E0	582.70 kW	1,000,000 CMH	29.0 kW	6,000 mm	1,623 kg
CLVC-264-E0	659.00 kW	1,320,000 CMH	34.8 kW	7,200 mm	1,844 kg
CLVC-274-E0	794.60 kW	1,988,000 CMH	40.6 kW	8,400 mm	2,066 kg
CLVC-284-E0	962.20 kW	2,560,000 CMH	46.4 kW	9,600 mm	2,288 kg
CLVC-294-E0	1164.70 kW	4,000,000 CMH	58.0 kW	12,000 mm	2,509 kg
CLVC-2104-E0	1164.70 kW	4,000,000 CMH	58.0 kW	12,000 mm	2,731 kg

↳ All units: H 2,451 mm · W 2,250 mm · Fan Ø800 mm · 77 dB(A) @ 1m. Full table available on the catalog.
